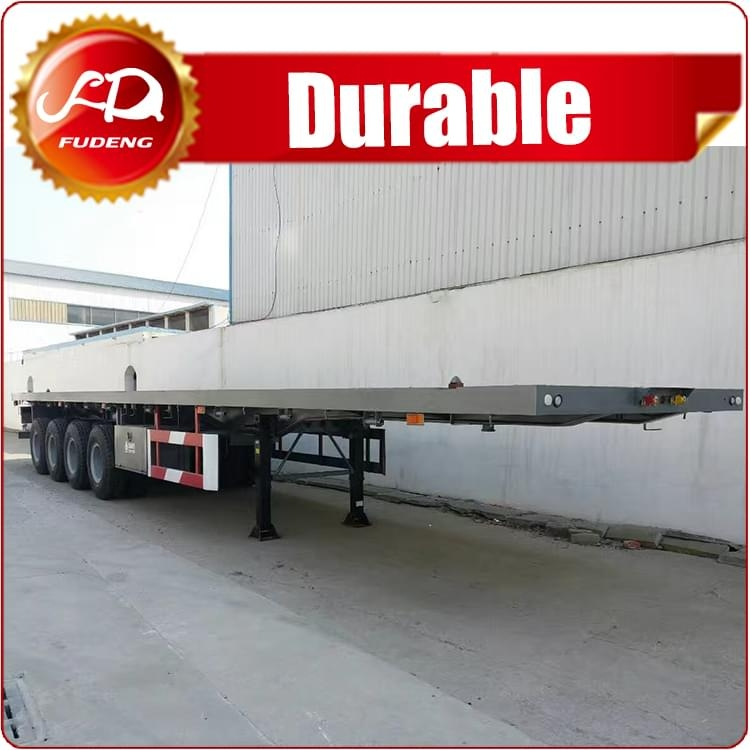

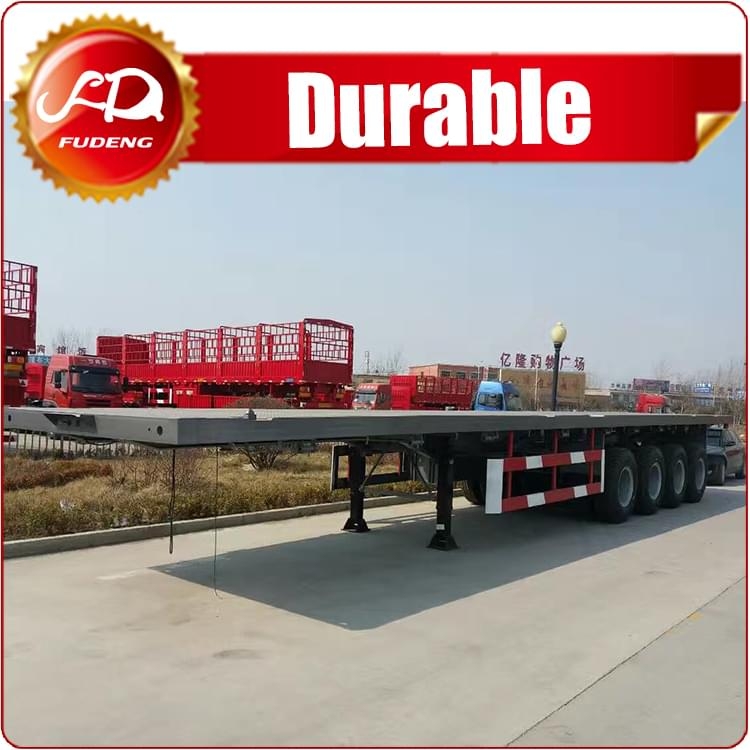

4 Axles Flatbed Semi Trailer

Dimension:12.5*2.5*1.55mAxle:3 axlesSuspension:Mechanical suspensionTire:12R22.5*12pcsColor:CustomizedWe're here to help:
Easy ways to get the answers you need.
Availability:

Product Description

Fudeng brand 4 axles flatbed semi trailer with mechanical suspension and 12 pieces twist lock,which make it can transport container more easier.Flatbed trailer dimension can according to your needs to design.


Our flatbed trailer length can be customized,we can also design for 20 foot,40 foot,45 foot and so on can transport 20 foot container and 40 foot container.

1595240558

4 axles flatbed trailer adapt FUWA brand axle,it has a durable lifetime and good capacity.If you have brand require,we can also choose the brand you want.1595244080

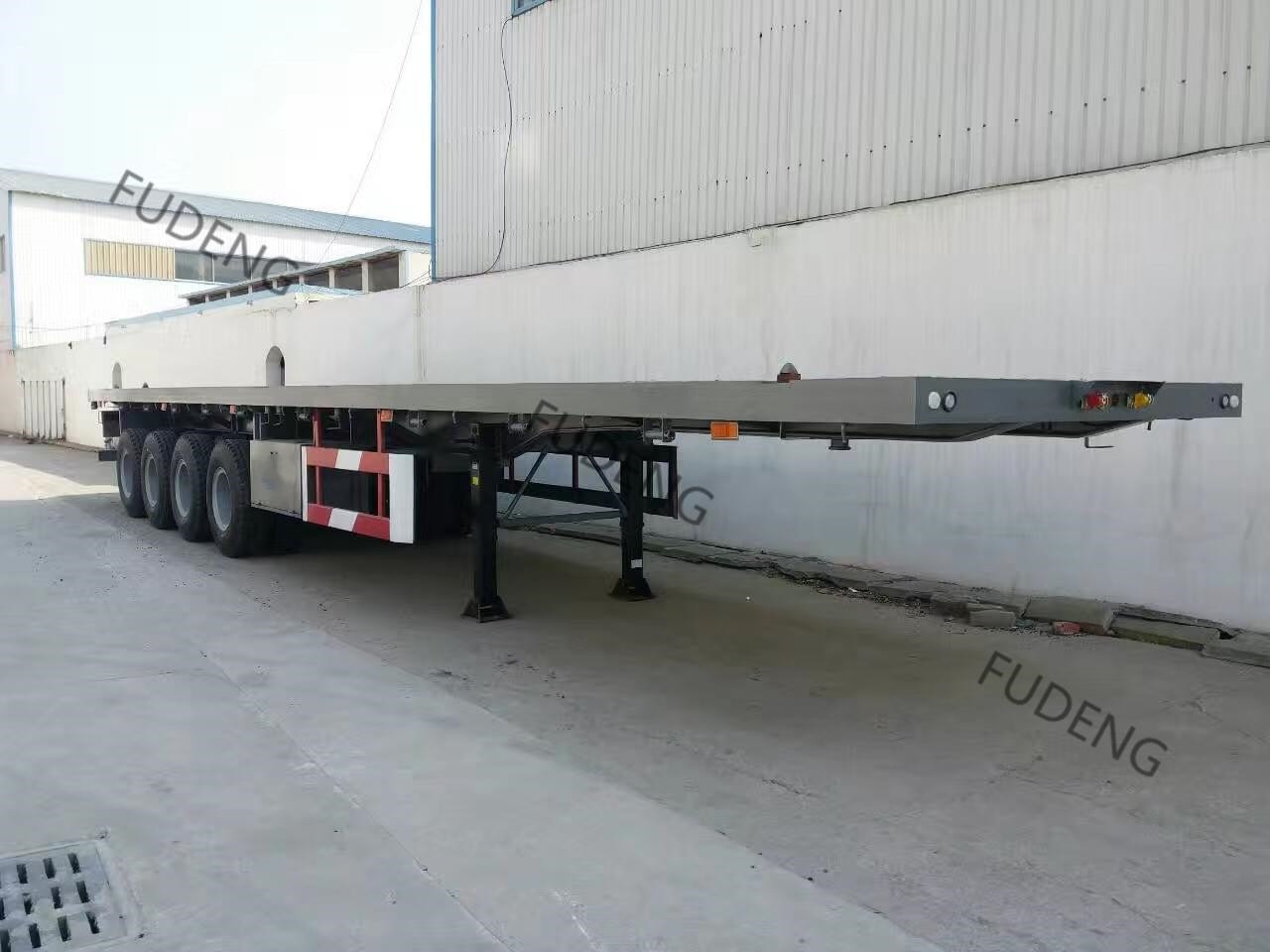

4 axles flatbed trailer is mechanical suspension and the leaf spring is 90mm*16mm*10pcs,which make it have a good performance in bad roads.1595246786

Dimension

12.5m×2.5m×1.55m

Payload

60 Tons

Tare weight

About 7.0T

Twist lock

12 units

Frame Floor

The Thickness is 3mm pattern

Edge beam

16# Channel

Through beam

10#Channel

Along beam

6#Channelx6

Axle

3 axles

Landing Gear

28T lifting capacity with two speed Jost brand

King Pin

2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension

Leaf Spring

90mm*16mm*10pcs

Pneumatic Braking System

Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve

Tire

12R22.5*12pcs

Accessories

One standard tool box

Spare tire rack

One

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anti corrosive prime, 2 coats of final paint


Please contact feel free to me acquire more about them.
