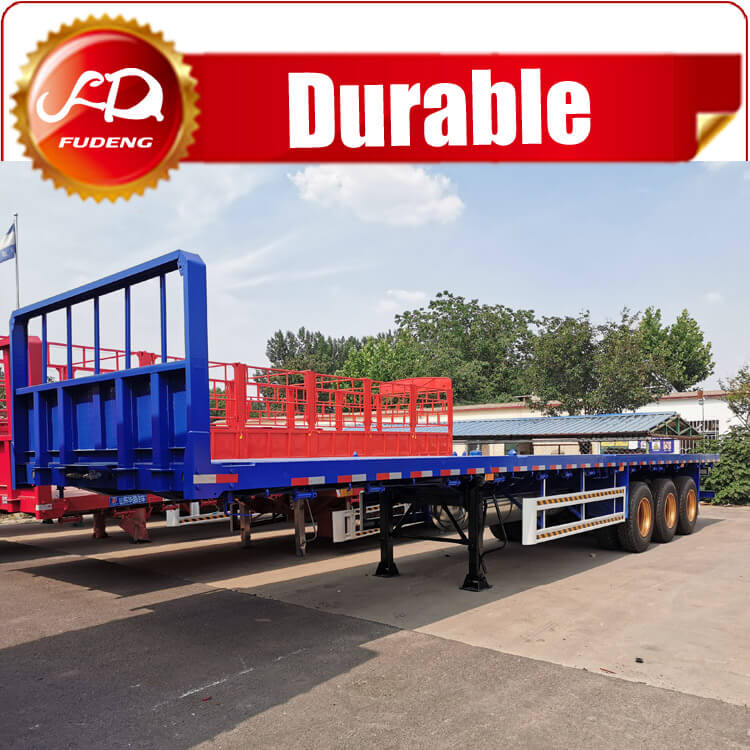

2 Or 3 Axles 20ft, 40ft Container Transport Flatbed Trailer

Place of Origin: Shandong, China (Mainland)Brand Name: FudengAxle: 2 Or 3 AxlesSuspension:Mechanical Or Air SuspensionLanding Gear:JOST 28Tons StandardColor:Custom's RequirementMax Payload: 70 TWe're here to help: Easy ways to get the answers you need.
Availability:

Product Description

2 Or 3 axles 20ft, 40ft container transport flatbed trailer Advantage:


  • 20ft Flatbed Container trailercan use it to carry one 20ft cargo containers at one time and also deliver products like pipe , steel , lumber and any other item you want.

  • High strength frame : Torsion - resistan of Main Longitudinal Beams("I" high strengh steel) and Transverse Beam (channel beam)

  • All the parts of Flatbed Semi Trailer are purchased from famous brand product like Jost Lading Gear, WABOCO emergency brake, BPW Axle.That made Flatbed Semi Trailer more reliable, exhibiting great strength and a long time time of use

  • 40ft Flatbed Container Trailerincludes a 3 mm thickness flat platform that is made of checkered plates. Ridges flatbed create more friction, thus making it slip-resistant.

  • Surface treatment: Pretreatment to coating , apply sandblast to the whole structure, zinc-rich primer puls acrylic polyurethane top coating.

  • Delivery time within 15 working days.


2 axles 20ft, 40ft container transport flatbed trailer


3 Axles 40ft 70Tons flatbed container trailers.




Click here to watch 40ft container flatbed trailer




flat bed trailer Specifications

Dimension

12.5m×2.5m×1.5m (Outside)

Payload

35T-75T

Tare weight

About8.5T

Twist lock

4, 8, 12 units or customized

Chassis

Frame

Welding design or Special designIbeam, connected by bolts and nuts, Q345B carbon steel material

Frame Beam

Upper and lower plate is20mm,middle is10mm.height is 500 mm

Frame Floor

The Thickness is 3-8 mm flat bed

Axle

2 or 3 axles, BPW/FUWA/HUAJING brand

Landing Gear

JOST (D200T)or CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type/air suspension

Leaf Spring

90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.

Rim

8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional

Tire

11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional



2 axles 20ft, 40ft container transport flatbed trailer drawing.
