Spring Suspension 40ft Container Flatbed Semi Trailer

Place of Origin: Shandong, China (Mainland)Brand Name: FudengAxle: 2 Or 3 AxlesSuspension:Mechanical Or Air SuspensionLanding Gear:JOST 28Tons StandardColor:Custom's RequirementMax Payload: 70ToWe're here to help:
Easy ways to get the answers you need.

Product Description

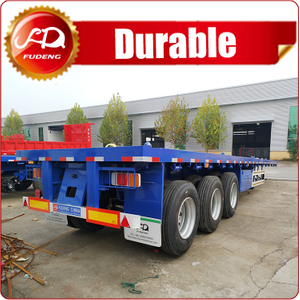

Spring suspension 40ft container flatbed semi trailer

Fudeng provides a lightweight, high load capacity flatbed trailer to meet today’s unique and special load demands. Fudeng’s special process of forming the steel beams prior to the final heat treatment of the metal, intern maintains the strength properties of the alloy and enhances the structural integrity of the design.

Specification of 40ft container flatbed semi truck trailer
Tare weight 7000kg Payload 55000kg
Oversize 12500x2500x1550mm
Chassis Heavy duty and extra durability designed l beam;opting for high tensile steel Q345,welded by automatic submerged-Arc processes.Top flange 14mm,width 140mm;middle Flange 8mm;bottom flange 16mm,width140mm
Axle 3 Capacity 13t/16t
Suspension Mechanical suspension Or air suspension
Leaf spring Leaf spring or air bag
Floor Checkered plate
Tire 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional
Wheel rim 8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice
Kingpin 2/3.5 bolt-in king pin
Landing gear JOST brand two-speed,manual operation,heavy duty landing gear
Twist lock 12 no. of ISO twist lock for 1x20ft,2x20ft,1x40ft container
Vehicular applications Container (20ft,40ft...) transport
Braking system WABCO RE6 relay valve;T30/30 spring brake chamber;40L air tanks.
Painting Complete chassis sand blasting to clean rust,1 coat of anticorrosive prime,2 coats of final paint
Accessories 1 standard tool box
Spare tire carrier 2 spare tire carrier without spare tires


12Units container Locks.


3 Axles 40ft 60Tons Flatbed container trailers.

Click here to watch 40ft flatbed video
