Chinese trailer 3axles 60T Lowbeds for sale

Fudeng lowbed semi trailer 3 axles low bed trailer with mechanical ramp is widely used in heavy machine transportation. Our lowbed semi trailer is made of Q345 high tensile steel, with greater durable capacity. Fudeng low bed semi trailer can definitely meet your needs.

Availability:

Product Description

    Fudeng Low bed truck trailer is widely used, mainly for medium and long-distance freight transportation. low bed trailers are commonly used to transport heavy vehicles, rail vehicles, mining machinery, forestry machinery, agricultural machinery, and other heavy-duty cargo.

    Our low bed trailer can satisfy the concentrated force, the anti bump, the distortion resistance and adopts Q345 High Strength Steel Material, to make sure the safety when our low bed semi trailer transport mechanical equipment and with longer service life and to avoid unnecessary maintenance.

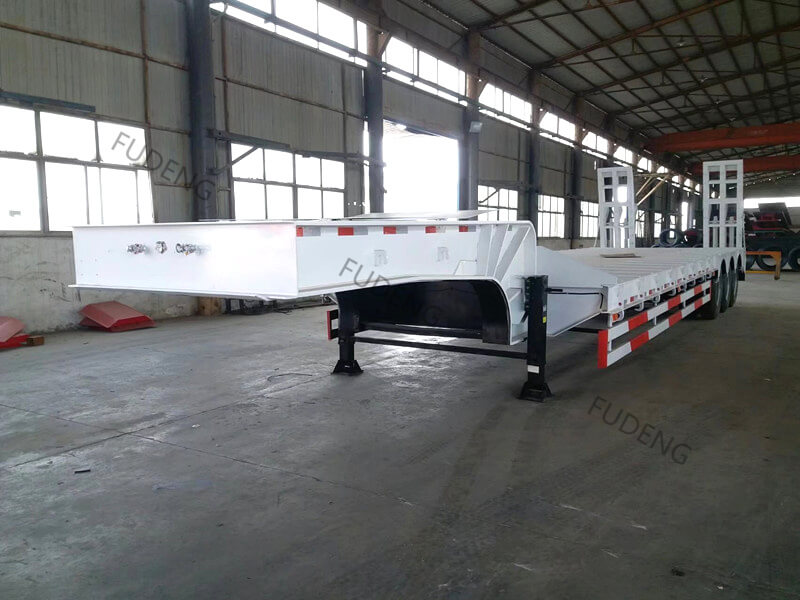

3桥低平板 (6)


Body

Dimension

13000×3000m×1700mm

The rated load

60T

Bottom Platform

4 mm Checkered Thickness

Main beam

Welding design “I” 300mm side beam , Main beam height 500mm

Frame beam

Top Flange 20mm; Bottom Flange 20mm, Middle Flange 10mm;

Ramp

Mechanical ladder

Chassis

Axle

3 axles , 13T FD brand 16ton brake pads

Landing Gear

28T lifting capacity with two speed

King Pin

2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension reforced type

Leaf spring

90mm(W)*16mm(T)*10 Layer , reforced type

Braking System

Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve

Tyre

11.00R20 * 12 pcs

Accessories

One standard tool box

Spare tire rack

One unit

Electrical system

24 volt electrical system.7 pin electrical connector.


3桥低平板 (7)


      Due to the low center of gravity of the lowbed transport, 60 Ton low bed trailer truck can transport huge cargo and avoid damage to the cargo. The width of the rear plate is generally 3m wide, but you can choose to add widener device, so that the width can reach 3.5m, then you can transport more types of machinery. The rear platform of the low bed semi traielr is 4mm thickness, 1mm thicker than the ordinary flatbed, so its bearing capacity will be higher, and the checkered platform increases the friction between the construction machinery and the platform, effectively preventing accidents happened.


     If you are interested in our products, please feel free to contact us at any time. Shandong Fudeng Automobile Co., Ltd. will provide you with better services and great prices. We are looking forward to cooperating with you.


You are always welcome to inquiry any time!

We will reply you in 7 hours.
