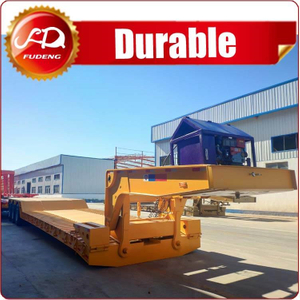

High Quality 3axles Front Loader Semi Trailer

The biggest difference between the Detachable gooseneck semi trailer and the ordinary low-bed semi trailer is that the detachable gooseneck trailer has a small ladder in the front. Construction machinery such as bulldozers and tractors climb onto the trailer from a small ladder in front of the detachable gooseneck trailer.

The middle platform of the Detachable gooseneck is also lower than the platform of the low-flat trailer, so it is more suitable for transporting some tall construction machinery, especially on some roads with limited height.


Product Description

     As the main product of our company, our Detacchable gooseneck semi trailer products have been sold all over the world. With high-quality products and excellent services, FUDENG brand is trusted by more and more overseas customers.

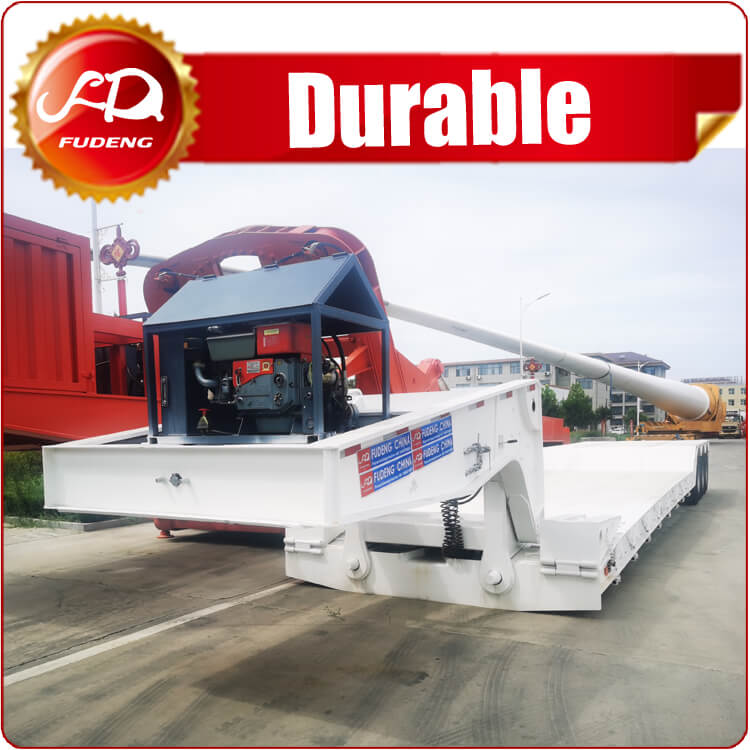

    Our detachable gooseneck trailers are made of high-tensile steel with greater durability, which has a stronger load-bearing capacity, and our detachable goosenecks are equipped with a JAC 12 kW diesel engine to provide power for the removal and installation of the gooseneck.

     The thickness of the middle platform of the detachable gooseneck trailer has reached 4mm. Together with the use of high-strength steel, the detachable gooseneck trailer has a stronger load-bearing capacity. The middle platform is the checkered platform, which makes the transported goods and the platform have stronger friction, ensuring the stability and safety during transportation.


     Regarding the number of trailer axles, our standard is to install three trailer axles. But we are customized products. According to the different road standards of various countries and the different goods transported, we can also manufacture and install four-car axles, five-car axles, and six-car axles to meet your needs. All of these are required in advance. You confirmed. At the same time, due to the increase of axles, in order to give you a better experience, we can also install Air suspension. When your load is light, you can raise the front axle, and when the load is heavier, lower the front axle. In order to ensure a better user experience.



3 axles , 13T FD brand 16ton brake pads

Landing Gear

28T lifting capacity with two speed

King Pin

2.00 or 3.5 inch bolt-in king pin


Mechanical suspension reforced type

Leaf spring

90mm(W)*16mm(T)*10 Layer , reforced type

Braking System

Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve


11.00R20 * 12 pcs


One standard tool box

Spare tire rack

One unit

Electrical system

24 volt electrical system.7 pin electrical connector.

    If you are interested in our products, please feel free to contact us at any time. Shandong Fudeng Automobile Co., Ltd. will provide you with better services and great prices. We are looking forward to cooperating with you.
