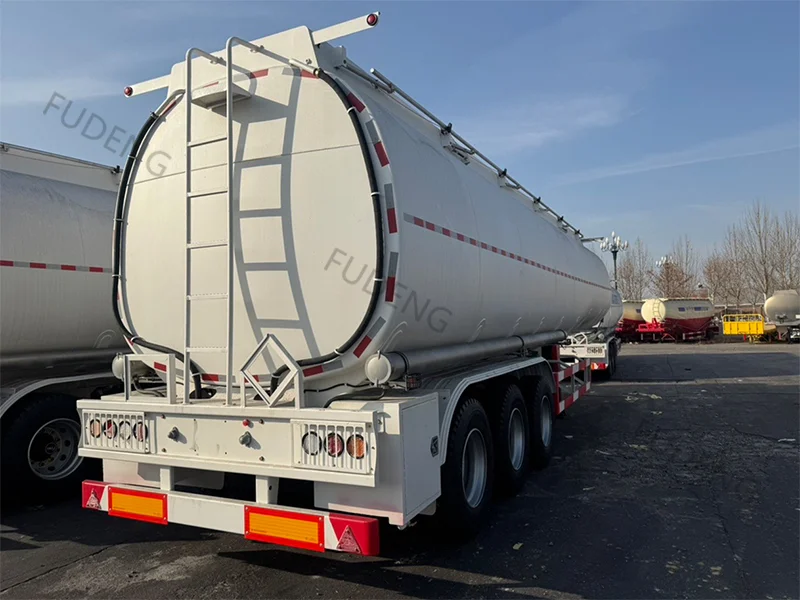

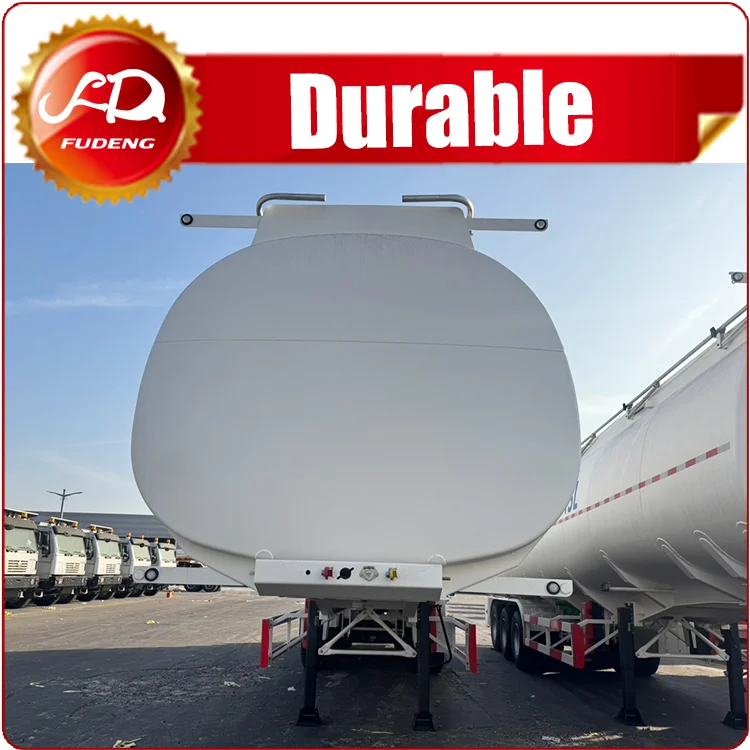

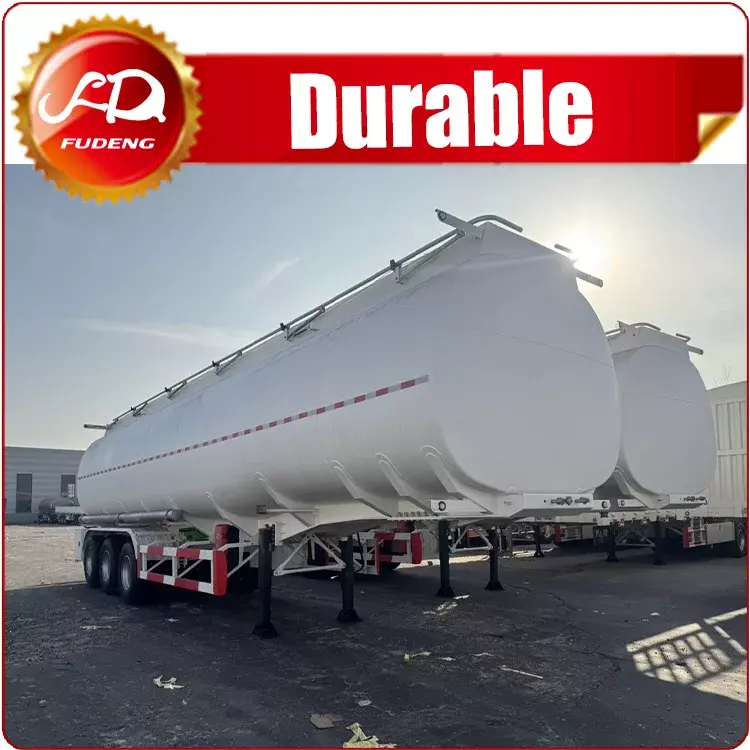

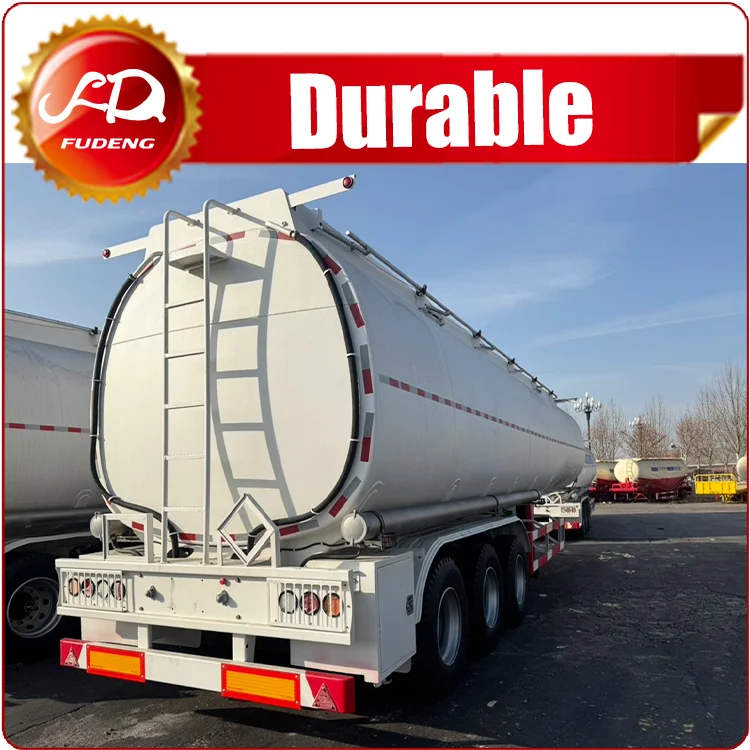

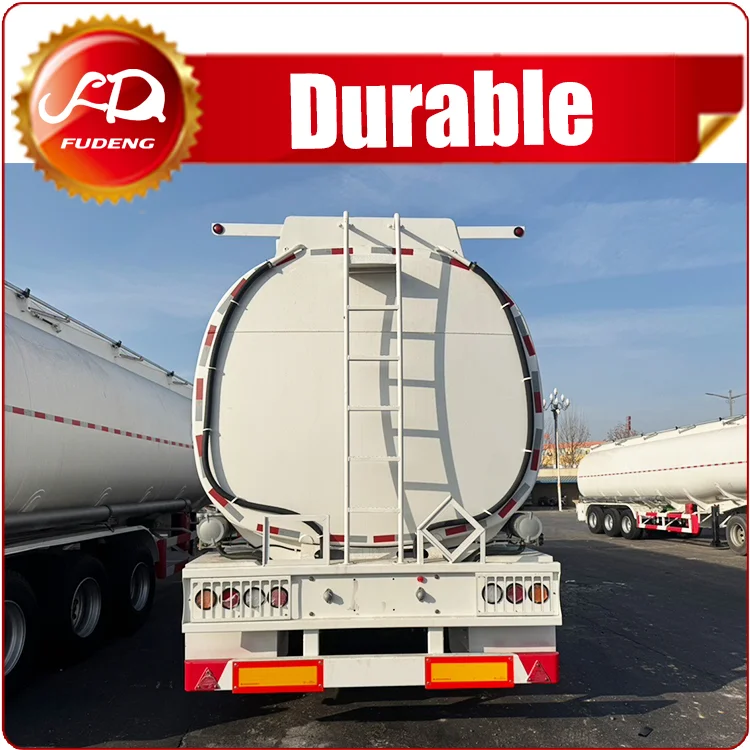

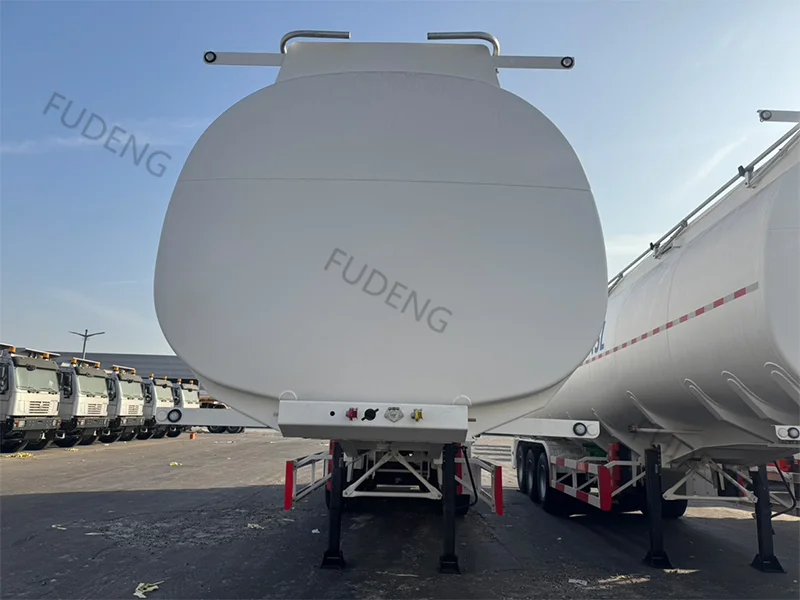

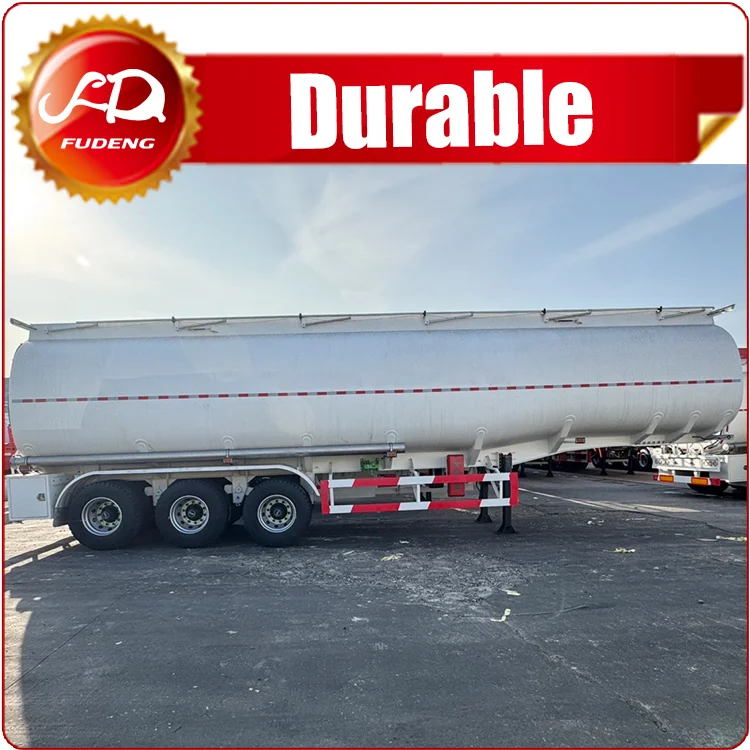

The 3 Axle 45,000L Fuel Tanker Semi Trailer is a heavy-duty fuel transport solution designed for long-distance fuel transportation in Africa and the Middle East. It is widely used to transport diesel, gasoline, and crude oil in mining operations, construction projects, fuel distribution networks, and remote logistics routes.
Manufactured by Fudeng Group, this fuel tanker trailer is engineered for reliable performance under harsh road conditions, including desert areas, rural roads, mining zones, and high-temperature environments.
This model combines high fuel capacity, multi-compartment flexibility, reinforced structural design, and low maintenance requirements, making it a practical solution for fuel logistics operators in developing markets.
Product Description
The fuel tank body is manufactured using high-strength Q345B carbon steel to ensure durability and long service life in demanding transport environments.
· Capacity: 45,000 liters (45CBM) or customized
· Tank material: Q345B high-tensile carbon steel
· Tank thickness: 5mm reinforced structure (4–5mm optional)
· End plate thickness: 6mm reinforced steel
· Shape: Round or elliptical optional
· Compartments: 6 compartments, customizable from 1 to 6 sections
· Anti-wave system: Internal baffle plates to reduce fuel movement during transport
The multi-compartment design allows operators to transport different types of fuel in a single trip, improving fuel delivery efficiency and reducing the number of trips required.
The fuel loading and discharge system is designed for simple operation, durability, and low maintenance, making it suitable for remote fuel stations and field operations.
· Manholes: 1–6 units (500mm carbon steel covers)
· Bottom discharge valves: Heavy-duty valves
· Discharge valves: 3 inch or 4 inch API standard (optional)
· Discharge system: Gravity discharge system or optional pump-assisted system
· Discharge hose: 6-meter rubber hose, durable and replaceable
This system is designed for easy maintenance and reliable operation in regions where technical support for fuel tanker trailers may be limited.

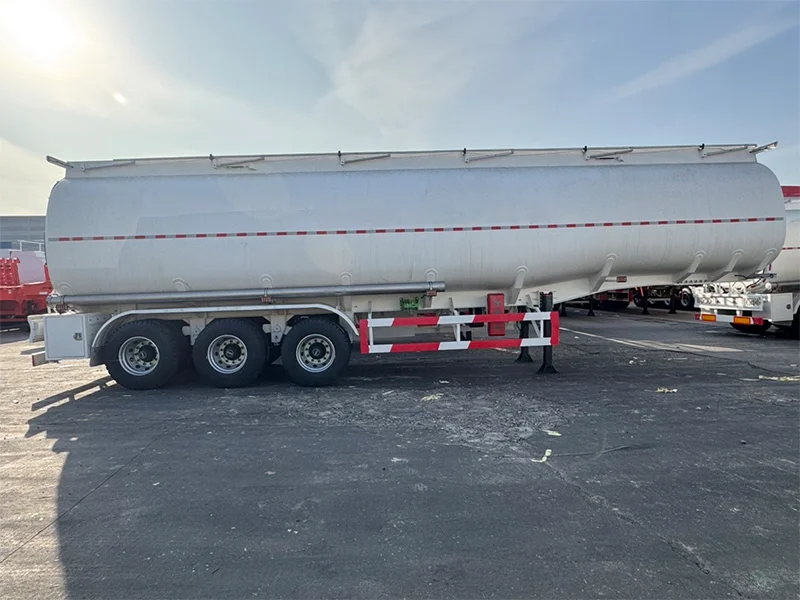

The 3 Axle chassis system is engineered for heavy-duty operation in challenging road conditions such as mining sites, desert highways, and rural transport routes.
· Axle configuration: 3 axles (FUWA, BPW, or FD optional)
· Main beam: Q345B high-strength H beam structure
· Suspension: Mechanical leaf spring suspension system
· Leaf spring: Multi-layer reinforced design (10–12 layers optional)
· Landing gear: Heavy-duty support legs
· King pin: 2 inch or 3.5 inch SAE standard optional
The chassis is designed for fuel tanker trailer applications requiring high load distribution, helping reduce structural stress and improve durability during continuous heavy-duty operation.
The braking system is designed for stable performance in high-temperature regions such as Africa and the Middle East for fuel tanker transport.
· Brake system: Dual-line pneumatic braking system
· Brake chamber: T30/30 heavy-duty spring brake chamber
· ABS system: Optional (WABCO or Knorr-Bremse available)
· Tire specification: 12R22.5 heavy-duty radial tires
The braking system ensures stable braking under full load conditions for fuel tanker semi trailer operations and long downhill routes.
To improve operational safety and maintenance efficiency, the fuel tanker trailer is equipped with:
· Anti-slip top walking platform
· Aluminum safety ladder
· Folding side guard rails
· Anti-static grounding system for fuel safety
· Emergency shut-off valve (optional)
These features ensure safe operation during fuel loading, unloading, and maintenance.
The 45,000L fuel tanker semi trailer is widely used in:
· Fuel distribution companies
· Petroleum logistics fleets
· Mining fuel supply operations
· Construction fuel delivery
· Government fuel supply systems
· Airport fuel logistics operations
It is especially suitable for multi-drop delivery routes using 6-compartment fuel tanker trailers.
This fuel tanker trailer for Africa and Middle East is designed for harsh road and climate conditions.
Key advantages include:
· Strong chassis suitable for rough roads
· Simple structure for easy maintenance of fuel tanker trailer
· Low maintenance and repair cost
· High transport efficiency per trip
· Flexible compartment configuration for fuel transport
· Easy availability of spare parts for fuel tanker trailers in local markets
These advantages help fuel logistics operators reduce downtime and improve fleet efficiency.
Fudeng Group is a professional fuel tanker trailer manufacturer in China, specializing in export-oriented transportation equipment.
Company strengths:
· More than 10 years of manufacturing experience
· Exported fuel tanker trailers to over 100 countries worldwide
· OEM and ODM customization available
· Strict quality inspection before shipment
· Factory direct pricing without intermediaries
We provide reliable and cost-effective solutions for global fuel transportation industries.
Item | Specification |
Capacity | 45,000 Liters (45CBM) |
Axles | 3 Axles (FUWA / BPW / FD optional) |
Compartments | 6 or customizable |
Tank Material | Q345B carbon steel |
Tank Thickness | 5mm / 6mm |
Suspension | Mechanical leaf spring |
Tires | 12R22.5 |
Brake System | Dual-line pneumatic system |
King Pin | 2.0 inch / 3.5 inch |
Yes, it is designed for rough roads, mining areas, and long-distance fuel transport in Africa and the Middle East.
Yes, the fuel tanker trailer can be designed from 1 to 6 compartments.
It can transport diesel, gasoline, and crude oil.
No, this fuel tanker semi trailer is designed for simple maintenance and easy spare parts replacement.
The 3 Axle 45,000L Fuel Tanker Semi Trailer is a reliable and efficient fuel transport solution designed for demanding operating environments in Africa and the Middle East. With its reinforced structure, flexible compartment system, and low maintenance design, it is an ideal choice for fuel logistics operators seeking long-term operational efficiency.
Fudeng Group provides stable manufacturing quality and customized solutions for global fuel tanker trailer needs.
