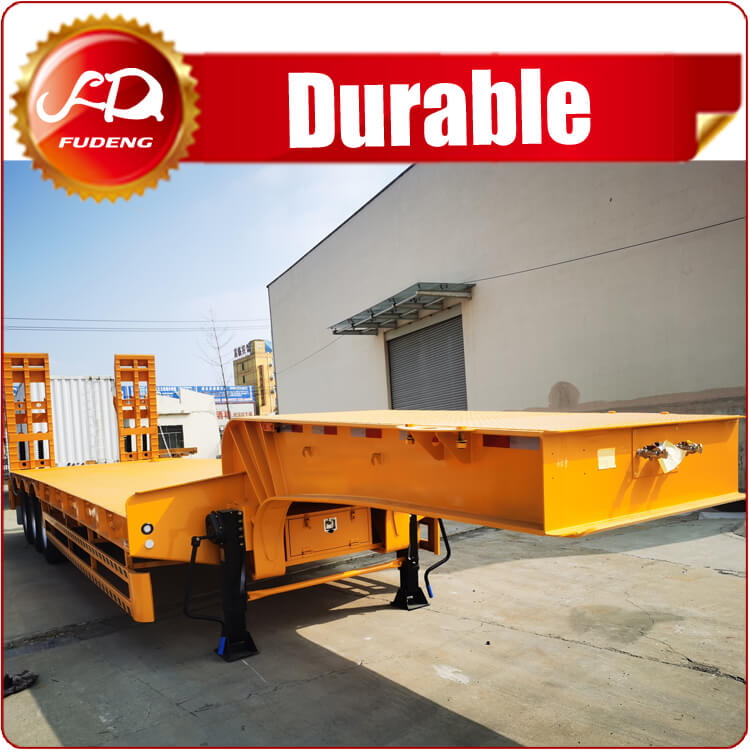

Low Price Tri-axles 70T Load Lowbed Semi Trailer

Low bed semi-trailers have stronger load-bearing capacity than ordinary flatbed semi trailer, and the thickness of the "I" beam is thicker than that flatbeds. It is mainly used to transport construction machinery, such as bulldozers and excavators.

As the mian product in our factory, Fudeng lowbed semi trailer is made of High tensile steel, equipped with reinforced suuspension and reinforced leaf spring. Which means our lowbed semi trailer have more bearing capacity. And the extended rear ladder suit for every kinds of mechanical equipment.

Availability:

Product Description

        Low bed semi trailer are very extensive, suitable for the transportation of various mechanical equipment, large objects, road construction equipment, large tanks, power station equipment and various steel materials.

        The main plane of the frame and cargo platform is low, which ensures the stability of transportation, and is suitable for carrying all kinds of construction machinery, large equipment and steel.


3桥低平板 (2)



Body

Dimension

13000×3000m×1700mm

The rated load

80T

Bottom Platform

4 mm Checkered Thickness

Frame beam

Top Flange 20mm; Bottom Flange 20mm, Middle Flange 10mm;

Ramp

Mechanical ladder

Chassis

Axle

3 axles or customized

Landing Gear

28T lifting capacity with two speed

King Pin

2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension reforced type

Leaf spring

90mm(W)*16mm(T)*10 Layer , reforced type

Braking System

Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve

Tyre

11.00R20 * 12 pcs

Accessories

One standard tool box

Spare tire rack

One unit

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anti-corrosive prime, 2 coats of final paint


       Low bed semi-trailers have stronger load-bearing capacity than ordinary flatbed semi trailer, and the thickness of the "I" beam is thicker than that flatbeds. It is mainly used to transport construction machinery, such as bulldozers and excavators. But you can also choose to install container twist locks, so that it can be used for multiple purposes. You can use it to transport 20ft containers or some bulk cargoes when you need. The ladder behind the car is also made according to your needs. You can choose mechanical ladder or hydraulic ladder. Our factory can manufacture them according to your requirements.


3桥低平板 (1)


FUDENG Lowbed trailer Advantage:

1. Main beam adopts high tensile steel, with high loading capacity.

2. Side beam adopt “I” steel, the durable design avoid the side beam to have the deformation.

3. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.

4. polyurethane paint, with long service lift, and avoid the vehicle get rust.

5. World famous brand spare part, ensure high quality and save costs.




You are always welcome to inquiry any time!

We will reply you in 7 hours.
