Discover the HOWO NX 380HP Dump Truck: 6×4 drive, 20m³ dump box, Weichai 380HP engine, and reinforced chassis. Built for mining, construction, and bulk transport. Full specifications, features, and buying guide.
Product Description

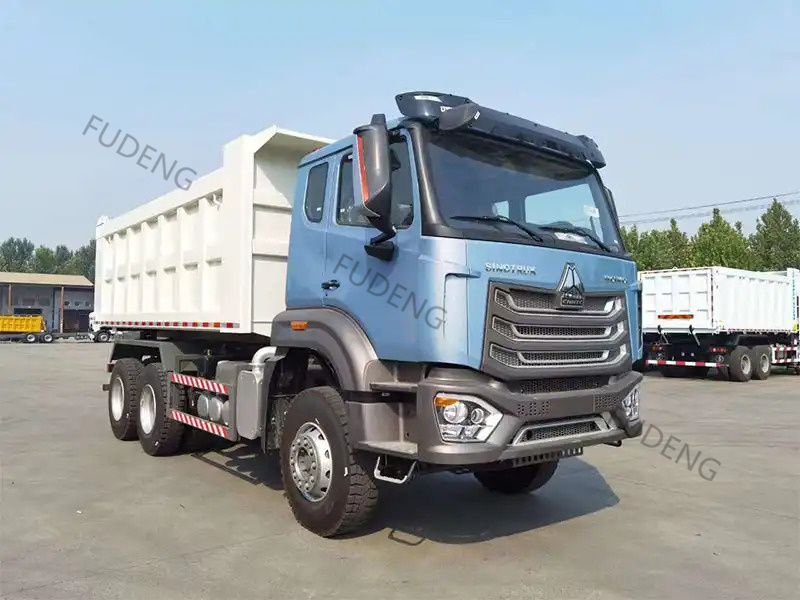

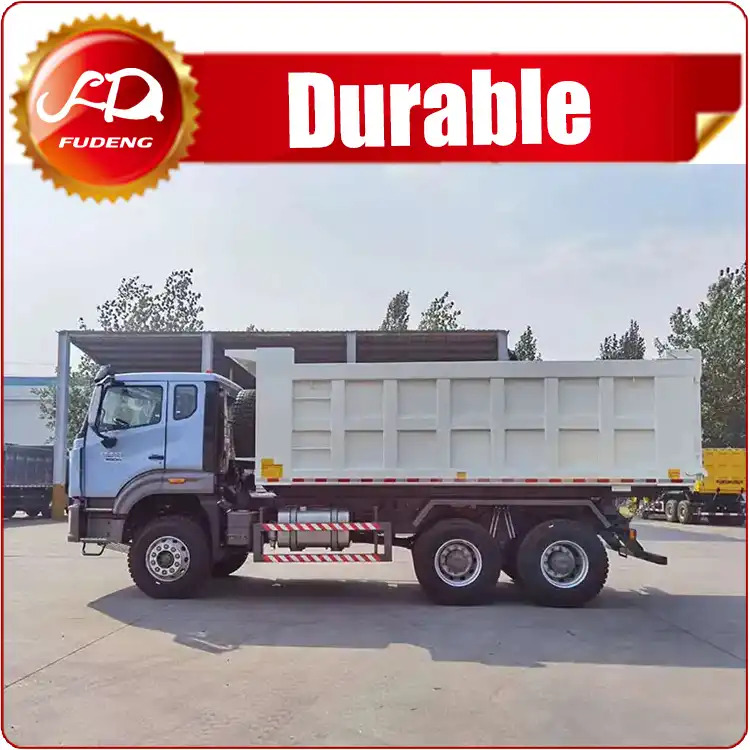

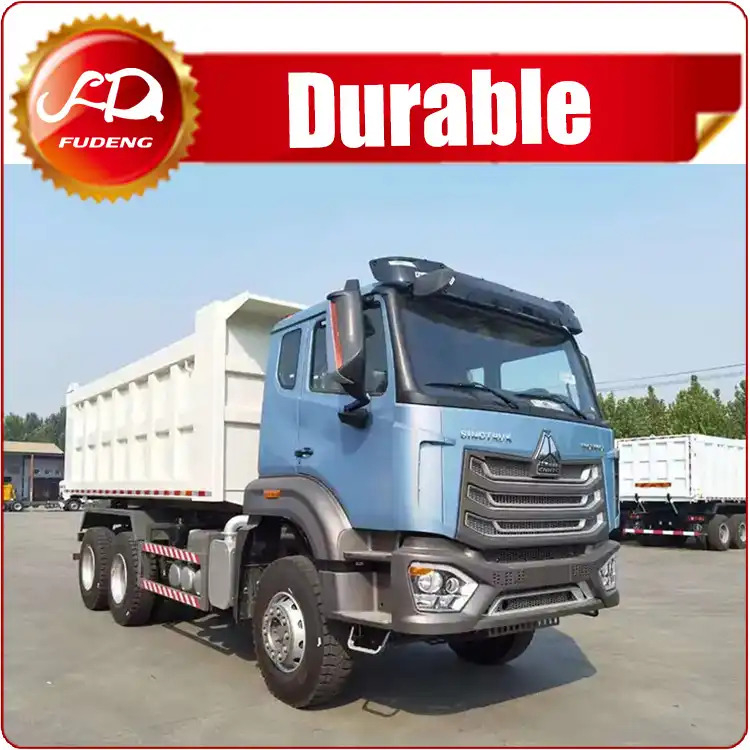

If you’re looking for a reliable heavy-duty dump truck that balances power, durability, and cost efficiency, the HOWO NX 380HP Dump Truck is one of the most competitive choices on the market. Designed by SINOTRUK with advanced engineering, this truck is purpose-built for demanding industries like construction, mining, and bulk material transport. With its 380 horsepower engine, reinforced chassis, and fast self-unloading system, the HOWO NX dump truck delivers higher productivity and lower operating costs for business owners worldwide.

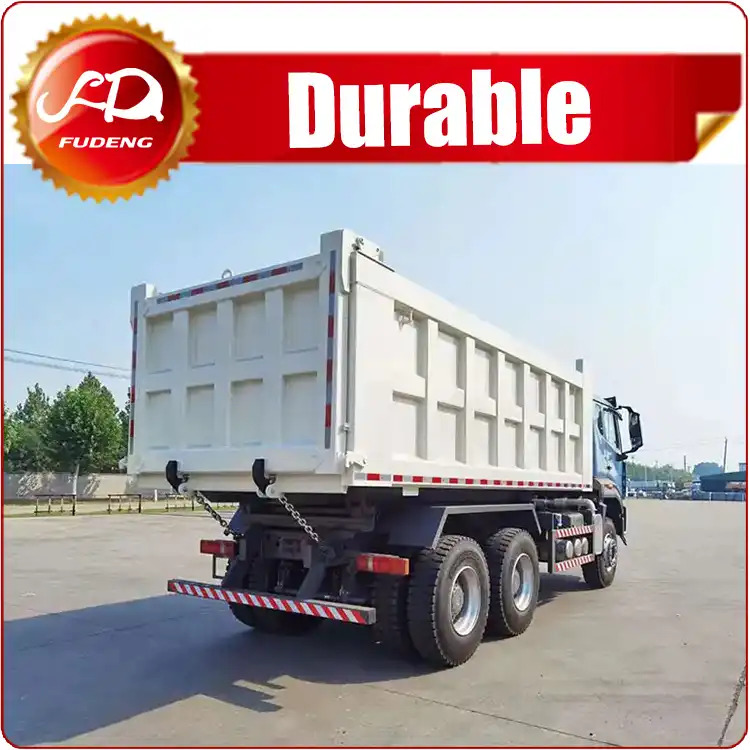

The HOWO NX Dump Truck is SINOTRUK’s new-generation model featuring modern technology, improved comfort, and higher structural strength. Its 20 cubic meter dump body is built from high-strength steel with 8 mm thick bottom plate and 6 mm side walls, ensuring a long service life even under heavy loads.
Powered by a Weichai WP10.380E22 engine producing 380 HP and paired with a 10-speed HW19710 gearbox, this truck combines excellent hauling capacity with responsive driving performance. The middle hydraulic lift system allows the truck to unload quickly and safely, cutting downtime and improving fleet efficiency
The reinforced 6×4 chassis and MCX16ZG heavy-duty rear axles provide superior strength, enabling the truck to handle loads of 30–45 tons with ease. Its design ensures stable driving on rough terrains such as mining areas, rural roads, and construction sites.
The middle hydraulic lifting system allows for faster unloading compared to traditional designs. Controlled by a joystick inside the cab, the process requires no manual labor, saving time, manpower, and fuel.

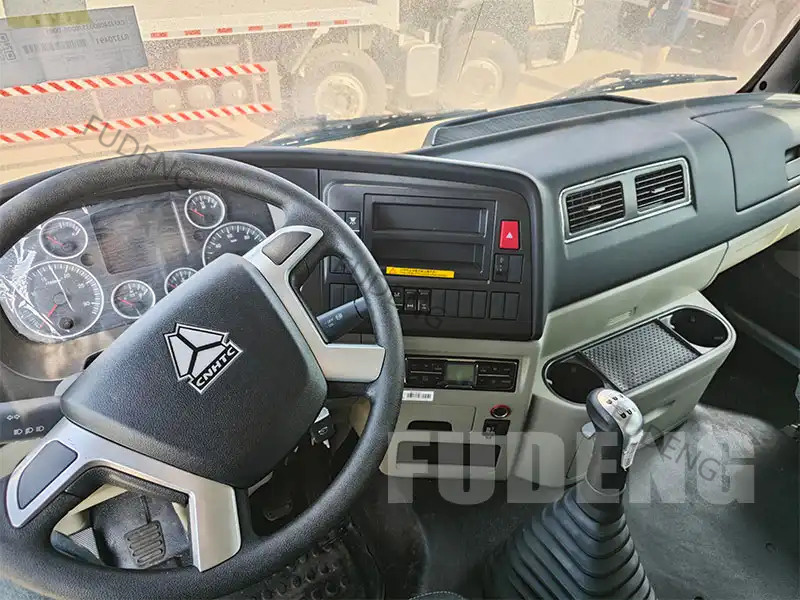

The HOWO HW77L cab is designed with driver comfort in mind:
Air-suspension seats with lumbar support
Efficient air conditioning system
User-friendly control layout
Optional multimedia and navigation system
This makes long working hours more comfortable, reducing driver fatigue and increasing efficiency.
The dump truck’s welded frame and reinforced suspension are designed to handle repeated heavy loads without deformation. Built with high-strength manganese steel, the chassis ensures long-term durability and lower maintenance costs.
Equipped with dual-circuit air brakes, ABS (optional), and wide radial tires, the HOWO NX dump truck guarantees safe braking and stability under full loads. The strong cab frame made of high-strength steel further improves crash protection.
| Item | Specification |
|---|---|
| Model | HOWO NX 380HP Dump Truck |
| Cabin | HW77L model, 2 seats, with sleeper |
| Drive Type | 6×4, 10 wheels |
| Engine | Weichai WP10.380E22, Euro II, 380HP |
| Transmission | HW19710 + HW50, 10 forward & 2 reverse gears |
| Front Axle | VGD95 |
| Rear Axle | MCX16ZG |
| Suspension | Reinforced leaf spring (front & rear) |
| Fuel Tank | 300L diesel |
| Dump Box | 5600 × 2300 × 1500 mm (≈20 m³) |
| Box Thickness | Bottom 8 mm, Side 6 mm |
| Dump System | Middle lift hydraulic system |
| Tires | 12R22.5, 315/80R22.5, or 13R22.5 (customizable) |
| Curb Weight | Approx. 12,800–13,500 kg |
| Payload Capacity | 30–45 tons |
| Overall Dimensions (L×W×H) | ≈ 8,200 × 2,496 × 3,450 mm |
| Steering | LHD standard (RHD optional) |
The HOWO NX 380HP Dump Truck is widely used across industries:
Construction Industry – Transport of sand, gravel, and building materials
Mining Industry – Hauling coal, ores, and rocks
Municipal Services – Transporting urban garbage and bulk waste
Infrastructure Projects – Road, dam, and tunnel construction logistics
Its adaptability to different road conditions makes it a reliable partner for heavy-duty transport tasks.
✅ Affordable price vs. performance ratio – one of the best in the heavy-duty dump truck market.
✅ Proven Weichai engine technology – reliable, fuel-efficient, and easy to maintain.
✅ Durable dump body design – thicker steel for longer life in tough conditions.
✅ Driver comfort – cab designed for long-hour operations.
✅ Global support network – SINOTRUK spare parts and service centers in Africa, Asia, South America, and the Middle East.
