Product Description

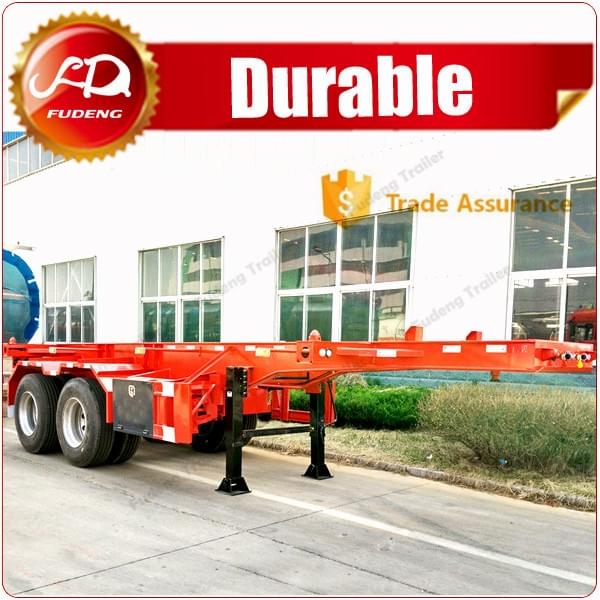

2 Axles 20ft container chassis trailers.
2 Axles 20ft container Skeleton trailers.
Chassis trailer specification | |
Dimension | 12.5m×2.5m×1.5m (Outside) |
Payload | 35T-75T |
Tare weight | About 4.5T--8.5T |
Twistlock | 4, 8, 12 units or customized |
Chassis | |
Frame | Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material |
Frame Beam | Upper and lower plate is20mm,middle is10mm.height is 500 mm |
Frame Floor | The Thickness is 3-8 mm flat bed |
Axle | 2 or 3 axles, BPW/FUWA/HUAJING brand |
Landing Gear | JOST (D200T)or CHINA BRAND 28T |
King Pin | JOST 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension/Germany or America type/air suspension |
Leaf Spring | 90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer |
Pneumatic Braking System | WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks. |
Rim | 8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional |
Tire | 11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional |
ABS | Optional |
Accessories | One standard tool box |
Voltage | 24V |
Packing and shipping | |
Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Shipping Terms | By Bulk Cargo/RORO/40HQ container |
