The 40ft skeleton chassis trailer size is 12.5m*2.5m*1.55m. The self-weight is about 7.5T, and the load-bearing capacity is between 40T and 60T.
Pneumatic Braking System: Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve.
Electrical system: 24 volt electrical system.7 pin electrical connector. Parking .stop,reverse,number plate and indicator lights. rear lights , rear front and side reflectors.
Painting: Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint.
Product Description

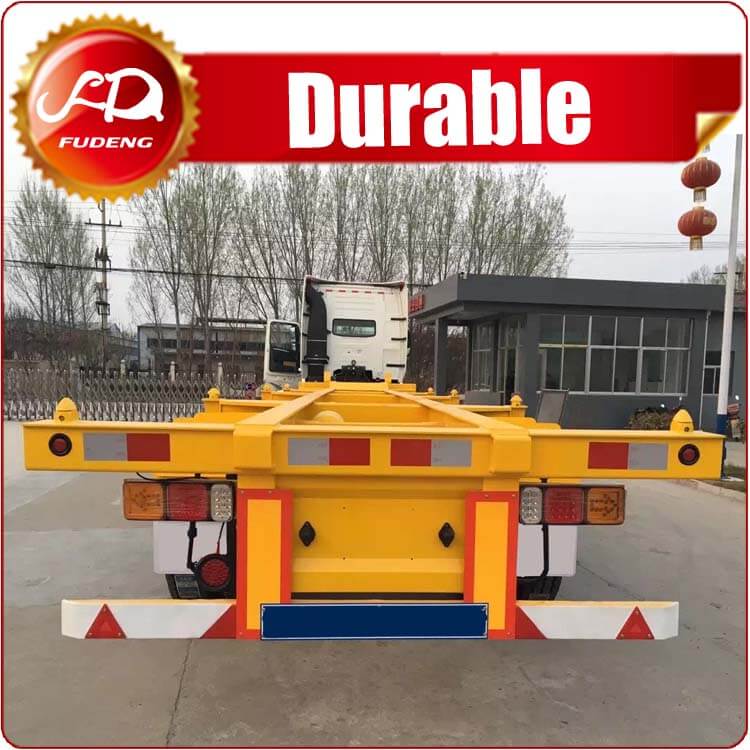

Skeleton trailers are mainly used to transport containers in ports. Whether you need a forty-foot-long or twenty-foot-long skeleton trailer, we can meet your requirements.
Forty-foot-long containers we are equipped with 12 container locks, so whether you transport a forty-foot container or a twenty-foot container, you can ensure that the container is in the middle of the skeleton trailer, so that you can ensure that the trailer is in the middle of the trailer. Stability during driving prevents accidents.
Main beam | Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes. |
Frame Beam | Top Flange 14mm,width 140mm; Middle Flange 8mm; Bottom Flange 16mm,width 140mm, main beam height 500mm |
Frame Floor | The Thickness is 3mm pattern |
Axle | 3 axles, 13T FD brand , 16ton brake pads |
Landing Gear | 28T lifting capacity with two speed |
King Pin | 2.00 or 3.5 inch bolt-in king pin |
Suspension | Mechanical suspension reforced type |
Leaf Spring | 90mm(W)*13mm(T)*10 Layer |
Pneumatic Braking System | Dual line pneumatic brake system,T30/30+T30 air chamber ,40L air tanks,Emergency relay valve |
Rim | 9.0-22.5*12pcs |
Tire | 12R22.5*12pcs |
Accessories | One standard tool box |
Fudeng hot sale 40ft skeleton chassis semi trailer for sale
It can transport one 40ft container or two 20ft containers
