Discover the 3 Axles Detachable Gooseneck Lowboy Trailer with 60T payload capacity, hydraulic gooseneck, and reinforced steel frame. Ideal for transporting heavy equipment in construction, mining, and infrastructure.
Product Description
The 3 Axles Detachable Gooseneck Lowboy Trailer is a heavy-duty transport solution built for moving oversized and ultra-heavy machinery such as excavators, bulldozers, cranes, industrial equipment, and large construction materials. With its detachable gooseneck design, high payload capacity, and reinforced steel frame, this trailer is widely used in industries like construction, mining, oil & gas, and infrastructure development.
Designed for efficiency, durability, and safety, it offers a lower loading platform, making it easier to transport tall or bulky cargo that cannot fit on conventional trailers.
| Feature | Details |
|---|---|
| Model Type | 3 Axles Detachable Gooseneck Lowboy Trailer |
| Overall Dimensions | 16m × 3m × 1.9m (customizable) |
| Payload Capacity | Up to 60 tons (customizable) |
| Gooseneck Type | Detachable hydraulic gooseneck |
| Main Material | Q345B high-tensile steel (SAW welded) |
| Main Beam | Heavy-duty “I” beam structure |
| Deck Thickness | 5mm patterned steel |
| Axles | 3 × 16T axles (Fuwa/York/BPW optional) |
| Suspension | Mechanical or air suspension |
| Braking System | Dual-line pneumatic brakes, T30/30 air chambers, 40L tanks |
| Tires | 12 units, 11.00R20 / 12.00R20 / 315/80R22.5 |
| King Pin | 3.5-inch JOST bolt-in king pin |
| Landing Gear | Heavy-duty mechanical landing gear |
| Fuel/Power Station | 12kW diesel power station (for hydraulic system) |
| Electrical System | 24V, LED lighting, waterproof connectors |
| Paint | Anti-rust primer + 2-layer automotive paint |
| Color Options | Red, Yellow, Blue, White, or custom |

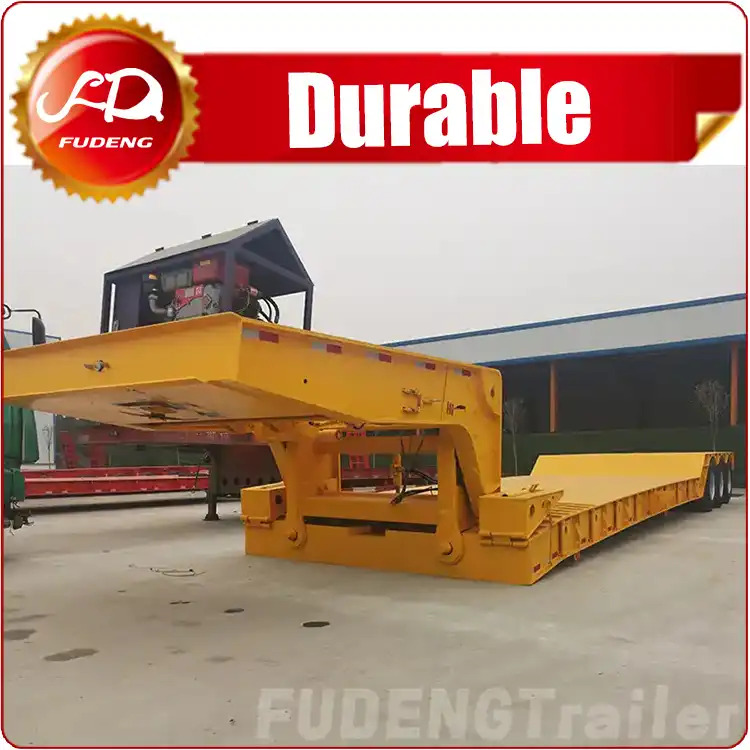

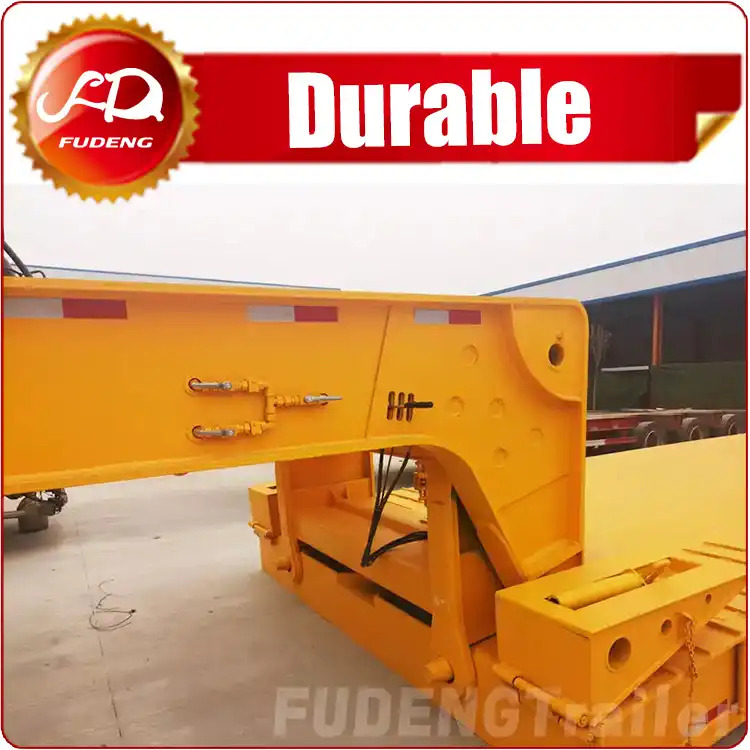

Allows the tractor to disconnect the front gooseneck section.
Cargo such as excavators or bulldozers can drive directly onto the trailer bed without ramps.
Improves safety and saves loading time.
Hydraulic control makes detaching and reconnecting smooth and reliable.
Built for transporting heavy-duty machinery and large construction equipment.

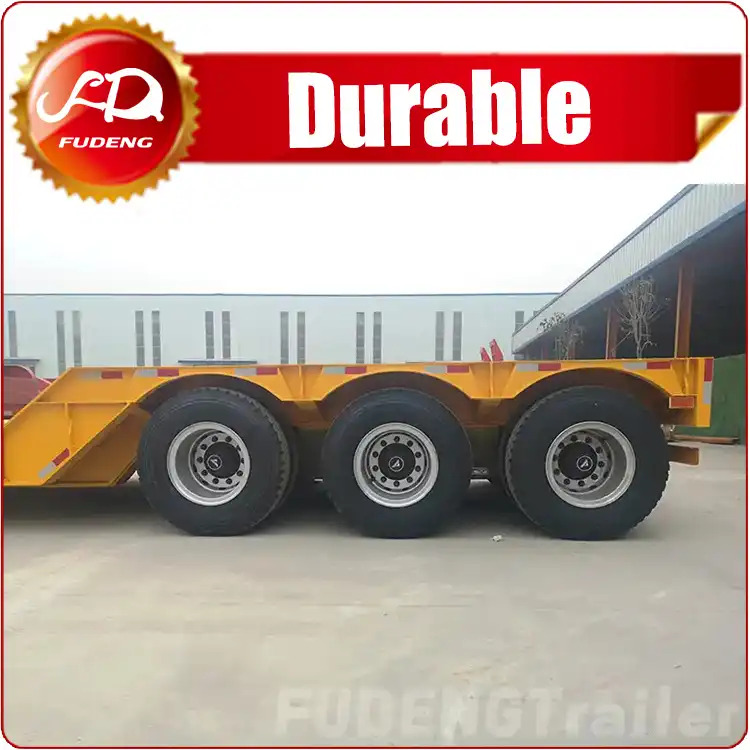

3 axles with high load-bearing tires distribute weight evenly, reducing stress on roads and the trailer frame.
Custom payload options available (40T, 50T, 60T, or more).
Lower deck height (1.2m–1.3m standard, customizable) allows for tall cargo to pass under bridges and powerlines.
Ideal for oversized cargo that cannot fit within normal container height limits.
Made from Q345B high-strength steel using Submerged Arc Welding (SAW) technology.
“I” beam design ensures long service life and resistance to bending under heavy loads.

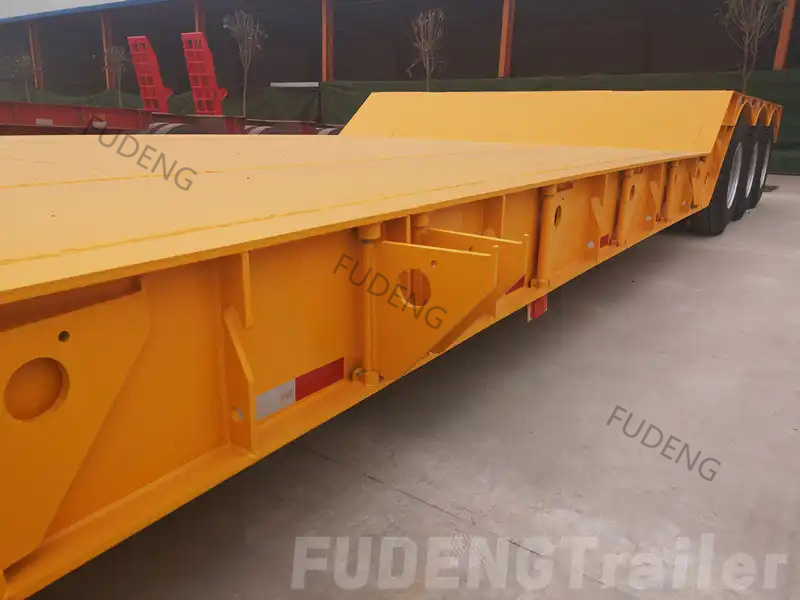

5mm patterned steel deck increases grip and reduces slippage.
Dual-line pneumatic brakes with emergency relay valve for enhanced safety.
Mechanical suspension standard, with air suspension upgrade option for smoother rides.
T30/30 brake chambers ensure quick braking response even under full load.
Dimensions, axle brand, suspension type, color, and payload capacity can all be customized.
Optional extendable deck design for extra-long cargo such as wind turbine blades or industrial pipes.
The trailer is widely used in industries requiring heavy-haul transport:
Construction Industry: Excavators, bulldozers, pavers, cranes, road rollers.
Mining Industry: Crawler drills, heavy loaders, mining machinery.
Oil & Gas Industry: Drilling rigs, oversized tanks, and pipelines.
Infrastructure Projects: Bridge beams, prefabricated concrete blocks, oversized steel structures.
Agriculture & Forestry: Large tractors, harvesters, and forestry machines.
✅ Efficient Loading/Unloading – Detachable gooseneck design eliminates the need for ramps.
✅ Stronger & Safer – Heavy-duty steel frame ensures durability under extreme loads.
✅ Customizable – Tailor-made dimensions, payload, and suspension options.
✅ Stable & Reliable – Mechanical/air suspension and high-quality axles ensure smooth transport.
✅ Cost-Effective – Reduced downtime with faster cargo handling.
1. What is the maximum payload capacity?
Standard models carry 60 tons, but designs can be customized for 40–100 tons.
2. How does the detachable gooseneck work?
The hydraulic system lowers the front of the trailer to the ground, disconnects the gooseneck, and allows machinery to be driven directly onto the deck.
3. Can the dimensions be customized?
Yes, length (13–18m), width (2.8–3.5m), and height (1.2–1.9m) can all be customized.
4. What brands of axles and suspension are available?
FUWA, BPW, York, or local Chinese brands depending on budget and requirements.
5. How long is the delivery time?
Standard production takes 7–15 working days, depending on order size and customization.
The 3 Axles Detachable Gooseneck Lowboy Trailer is the perfect solution for companies that need to move heavy and oversized cargo safely and efficiently. With its hydraulic detachable gooseneck, 60-ton payload capacity, durable steel frame, and customizable features, it offers unmatched performance across construction, mining, and infrastructure projects.
If you are looking for a reliable heavy-haul trailer with a long service life and low maintenance cost, the Detachable Gooseneck Lowboy Trailer is the right choice for your fleet.
