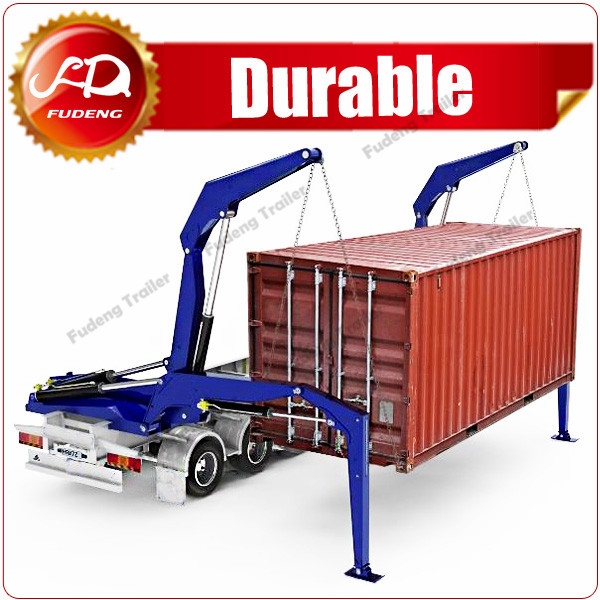

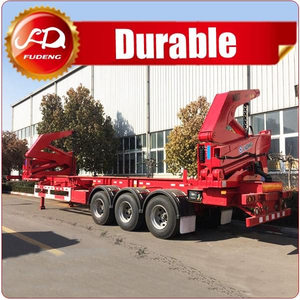

16 Ton Side Lifter Container Trailer

作业性能参数
Lifting Performance

Max. lifting capacity

kg

37000

Max. working range

mm

4000

Max. stabilizer outreach

mm

3200

重量参数Weight

Curb mass

kg

14500

Mass of sidelifter

kg

7250

Maximum gross mass

kg

40000

尺寸参数
Dimension

Outline dimension of semi-trailer(L×W×H)

mm

14100×2500×4000

Outline dimension of sidelifter(L×W×H)

mm

1020×2500×2490

Wheel base

mm

8000+1350+1350

Track(front axle/rear axle)

mm

1820/1820/1820

Front overhang / Rear overhang

mm

-/2370

Approach angle/Departure angle

°

-/13

发动机
Engine

Model

——

久保田 V2403-M-DI-E3B-CSL-1

Kubota V2403-M-DI-E3B-CSL-1

Power/rotation speed

kW/r/min

36.5/2600

Emission standard

——

Off-road, Euro III
