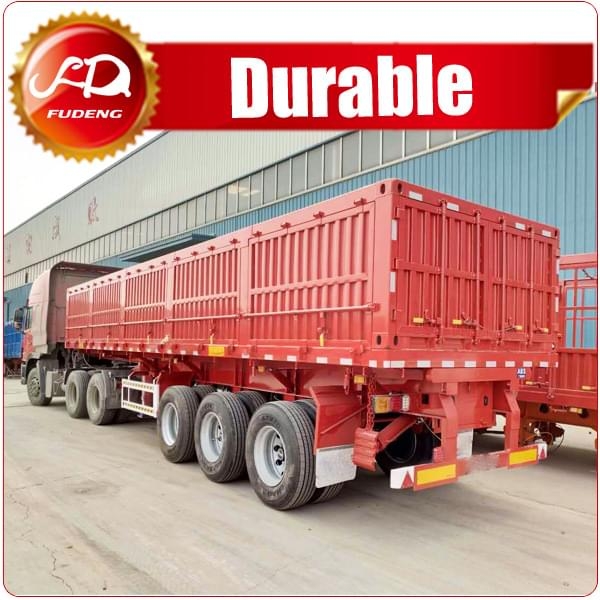

Tri Axle 40 M3 60 Ton Side Tipping Trailer

Body

Dimension

11000*2500*3300mm

Payload

70000 KGS

Box dimension inside

10900*2400*1600mm

Box thickness

Side 3mm, plate 3mm

Hydraulic cylinder

5 side tipping cylinder +1 shifting cylinder, can unload both sides

Tare weight

About 11000kg

Chassis

Frame

Welding design or Special design I beam, connected by bolts and nuts, Q345B steel material

Frame Beam

Upper plate is 14mm and lower is 16 mm, middle is 8 mm. height is 500 mm

Axle

4 axles, 13T American type FD brand

Landing Gear

Standard 28T JOST brand

King Pin

2.00(5.0) or 3.5(9.0) JOST brand

Suspension

Mechanical suspension

Leaf Spring

90mm(W)*16mm(T)*10 Layer

Pneumatic Braking System

8 air chamber, 4 axles synchronization WABCO brand

Rim

8.25-20, 8.25-22.5,

Tire

11.00 R 20, 12.00 R 22.5

ABS

KEMI brand

Accessories

One standard tool box

Voltage

24V

Packing and shipping

Painting

Complete Chassis sand blasting to clean rust, 2 coat of anticorrosive prime, 1coats of final paint

Shipping Terms

By Bulk Cargo/RORO
