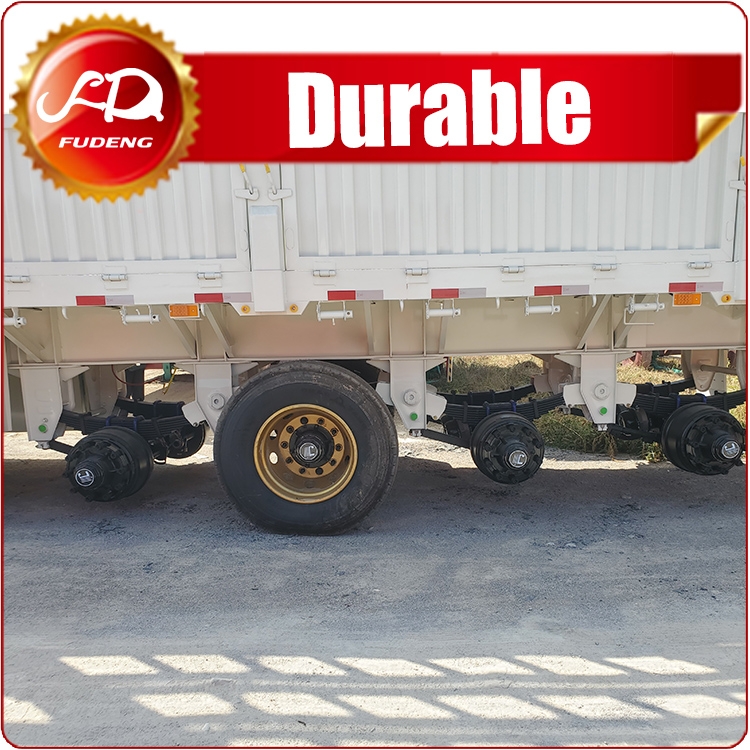

Shandong Fudeng automobile supply high quality 4 axles 16 meters fence cargo trailer, and the side wall fence semi trailer is a specialized for carrying 40ft cargo trailer, two 20ft containers, or one 20ft container without removing the side walls or frame.
All the key component and parts used to make up the Side Wall Fence Trailer are purchased from qualified suppliers, so our side wall fence semi trailers are able to withstand a long time of use, exhibiting great strength.
1. This series side wall semi trailers ,fence semi trailer and van semi trailer are mainly used in heavy duty transportation for construction
or logistic companies such as bulk cargo transportin. The side wall of them are detachable, so you we can use it transport standard
2. The capacity is for 30tons-500tons , we can manufacture it according to your needs.
3. The axles can be FUWA / BPW with different tonnages by your need with price differences.
4. The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc
5. The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable.
6. The loading ramps can be rear end designed, or front loading ladders, which can be mechanic spring ladders and hydraulic loading
ramps by different needs
|Tare Weight ||About 7.1T |
|Dimension ||16000mm*2490mm*3500mm |
|Loading Capacity (T) ||60 T |
|Axle ||3 axles |
|Tire ||12.00R22.5/ 315 80R22.5 |
|Suspension ||Mechanical suspension |
|Spring leaf ||90(W)mm*16(Thickness)mm*10 Layer or 100mm*12mm*12 |
|King pin ||Famous brand 2.0 or 3.5inch bolts type or Welding type |
|ABS ||Optional |
|Twist Locks ||12pcs |
|Light ||LED light |
|Voltage ||24V |
|Tool box ||One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
|Painting ||Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
Acquire more about it please feel free to contact us.
