China Side Wall Semi Trailer for Sale

Dimension:
Side wall height:
Capacity:
Suspension:
Availability:

Product Description

Side wall semi trailer also called drop side semi trailer , such as flatbed trailer design with side wall. The side wall equip with container lock, can transport 20ft and 40ft container, removable side wall more convenient worker loading and offloading goods. The side wall design on the basic of the flatbed semi trailer, the height of the side wall can be detached when you need that. It can become the flatbed semi trailer to use when you detach the side wall. It can support you transport the 20ft and 40ft container and diverse bulk cargo, use one unit side wall semi trailer can achieve muti-function for your transportation. We have 2 axles 3 axles 4 axles side wall semi trailer for sale now, the max payload can customized and design according to your specific transport demand. This kind of side wall semi trailer widely used to transport bulk crago besides the container, such as Agricultural products, grain etc. The side wall semi trailer is be used many country of the Africa, the small door of the side wall is convenient for loading and unloading the goods.

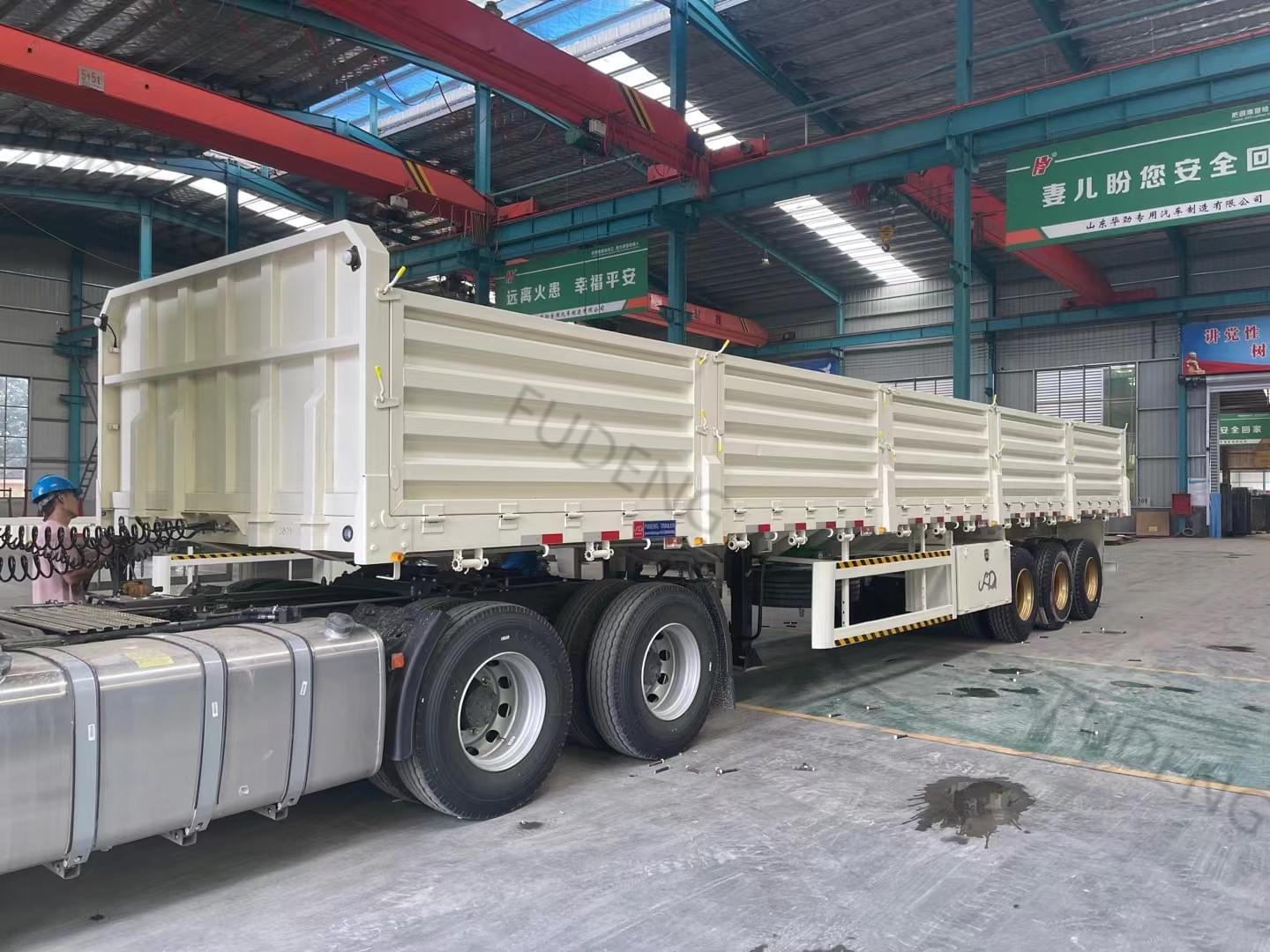

163

side drop semi trailer for sale hot and popular in Africa.

Our advantage of the side wall semi trailer:
1.As for the raw material of it, adopts high strength steel material to manufacture the side wall semi trailer, it can make the sidewall trailer have a higher loading capacity and a longer service life.

2.The specific height of the side wall and other parts of the side wall support the personal design according to your requirements.

3.We using the reinfored mechanical suspension and main beam for you, ensure the side wall can adapt the heavy duty capacity and rough road condition in Africa.

4.High quality side wall, make sure the stability and safety during the transport process.

5.All the sparr parts use the famous brand to ensure the long using life of the side wall

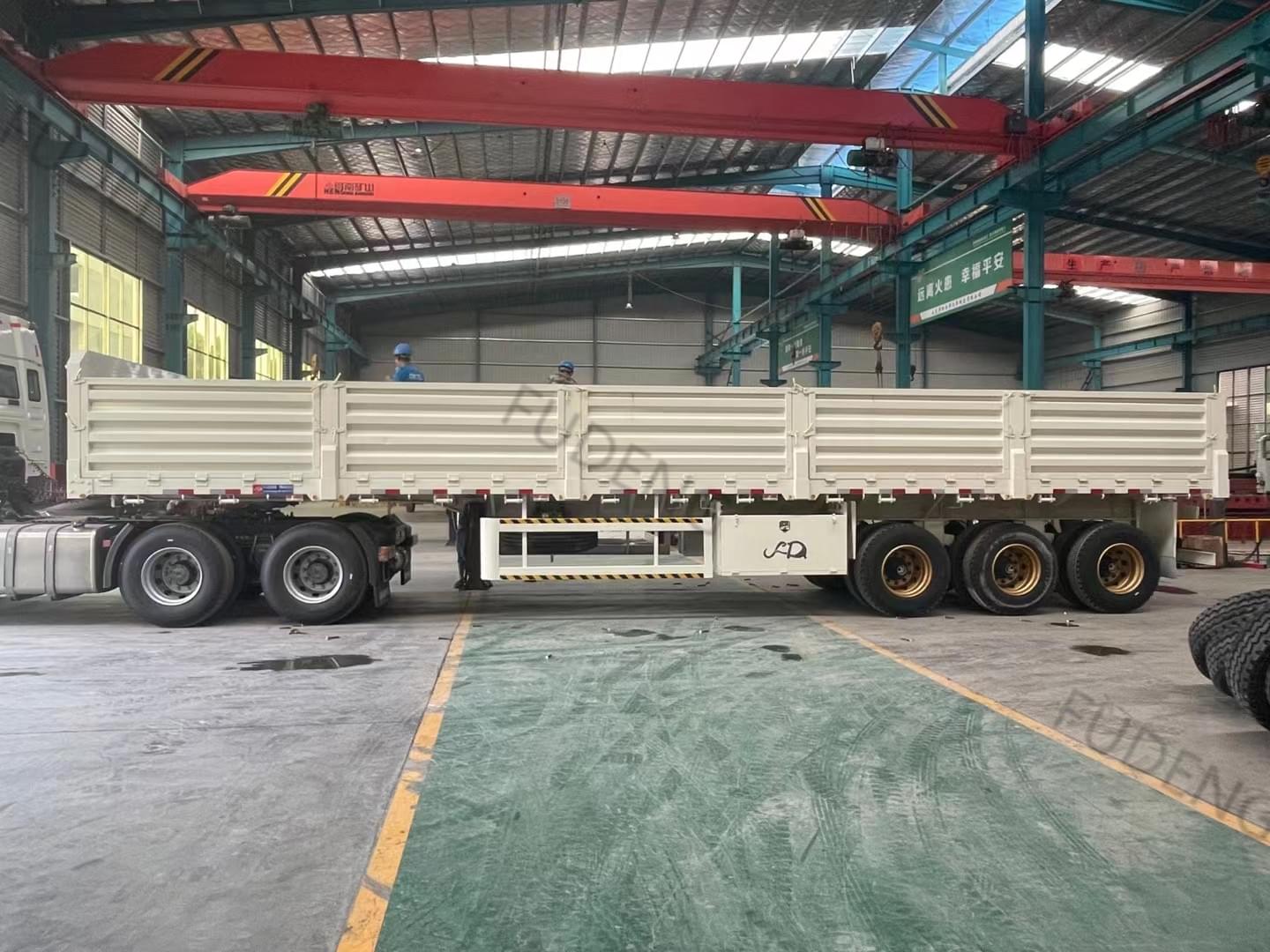

164

Specifications

Dimension

12.5m×2.5m×(1.55+0.9)m (Outside)

Payload

60T

Side wall height

0.9m

Tare weight

About  8.4T

Container lock

12 units

Chassis

Main beam

Heavy duty and extra durability designed I beam; Opting for high tensile steel Q345B, welded by automatic Submerged-Arc processes.

Frame Floor

The Thickness is 3mm pattern

Axle

3 axles

Landing Gear

JOST 28T lifting capacity linkage landing gear

King Pin

2.00 or 3.5 inch bolt-in king pin

Suspension

mechanical suspension

Leaf Spring

90mm(W)*16mm(T)*10 Layer

Tire

315/80R22.5 *12pcs

Accessories

One standard tool box

Spare tire rack

One



If you are want know more information about it, welcome to inquiry us, our sales manager will contact you as soon as possible.
