2 Axle 20cbm-30cbm Sand Dump Trailer

China Shandong Fudeng Automobile Co., Ltd produced U/Square-shaped dump semi trailer, large capacity, strong power, durable, is the easy ways to get the answers you need.
Dimension:
Payload:
Suspension:
Axles:
Color:
Availability:

Product Description

2 axle 20cbm-30cbm sand dump trailer

Applications:


Dump Tipping Semi trailer can take different Materials including (in many sizes, types, grades and colors):Crush Stone,Rock,Sand / Sandy Loam,Gravel,Masonry Aggregates,Mulch,Recycled Products,Fill Dirt,Fill Materials,Specialty Aggregates,Base Rock,Topsoil,Custom Soils Mixes,Clay and Construction Materials,Landscape Materials,Asphalt,Oil,Field Materials,Dump Sites for Dirt, Concrete, Asphalt, Rubble, Dredge and Contaminated Materiales.

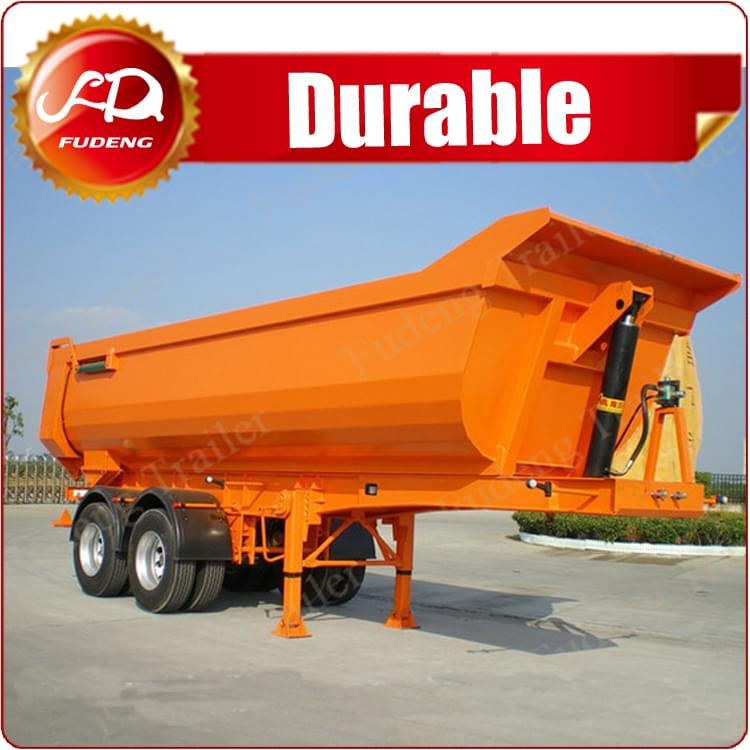

U Shape Dump tipping semi trailers

2 Axle 20cbm-30cbm Sand Dump Trailer


Square shape Dump tipping Semi trailers


2 Axle 20cbm-30cbm Sand Dump Trailer


dump trailer Specifications

Tank Body

Shape

Rectangle or U shape

Dimension

7.5-12m×2.5×4m (Outside)

Payload

40T-100T

Tare weight

About 7.5T-15T

Lifting system

Full set of Hyva hydraulic system/Chinese brand

Chassis

Frame

Welding design or Special design I beam, connected by bolts and nuts, Q345B carbon steel material

Frame Beam

Upper and lower plate is20mm,middle is10mm.height is 500 mm

Frame Floor

The Thickness is 3-8 mm flat bed

Axle

2 or 3 axles, BPW/FUWA/HUAJING brand

Landing Gear

JOST (D200T<span "="" style="box-sizing: border-box;list-style: none;letter-spacing: 0px">) or CHINA BRAND 28T

King Pin

JOST 2.00 or 3.5 inch bolt-in king pin

Suspension

Mechanical suspension/Germany or America type/air suspension

Leaf Spring

90mm(W)*13mm(T)*10 Layer/90mm(W)*16mm(T)*10 Layer/ 100mm(W)*16mm(T)*10 Layer

Pneumatic Braking System

WABCO RE 6 relay valve; Spring brake chamber (TKL brand); one piece of 45L air tanks.

Rim

8.5-20,9.0-20,8.25-22.5,9.0-22.5 optional

Tire

11.00R20,12.00R20,11R22.5,12R22.5,315/80R22.5 Tire optional

ABS

Optional

Accessories

One standard tool box

Voltage

24V

Packing and shipping

Painting

Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint

Shipping Terms

By Bulk Cargo/RORO
